Solar Switchboard Upgrade for Battery & Ducted Air Con in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that facilitates a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was needed.

Choose Precision Electrical & Air for Your Essential Switchboard Upgrade

This homeowner in Chelmer engaged in a thorough renovation project that included the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire home. Additionally, a new ducted air conditioning system was integrated into the overall design. Prior to connecting these advanced systems, it was essential to assess and improve the existing switchboard to guarantee compliance with the latest standards and effectively manage the increased electrical loads these installations would introduce.

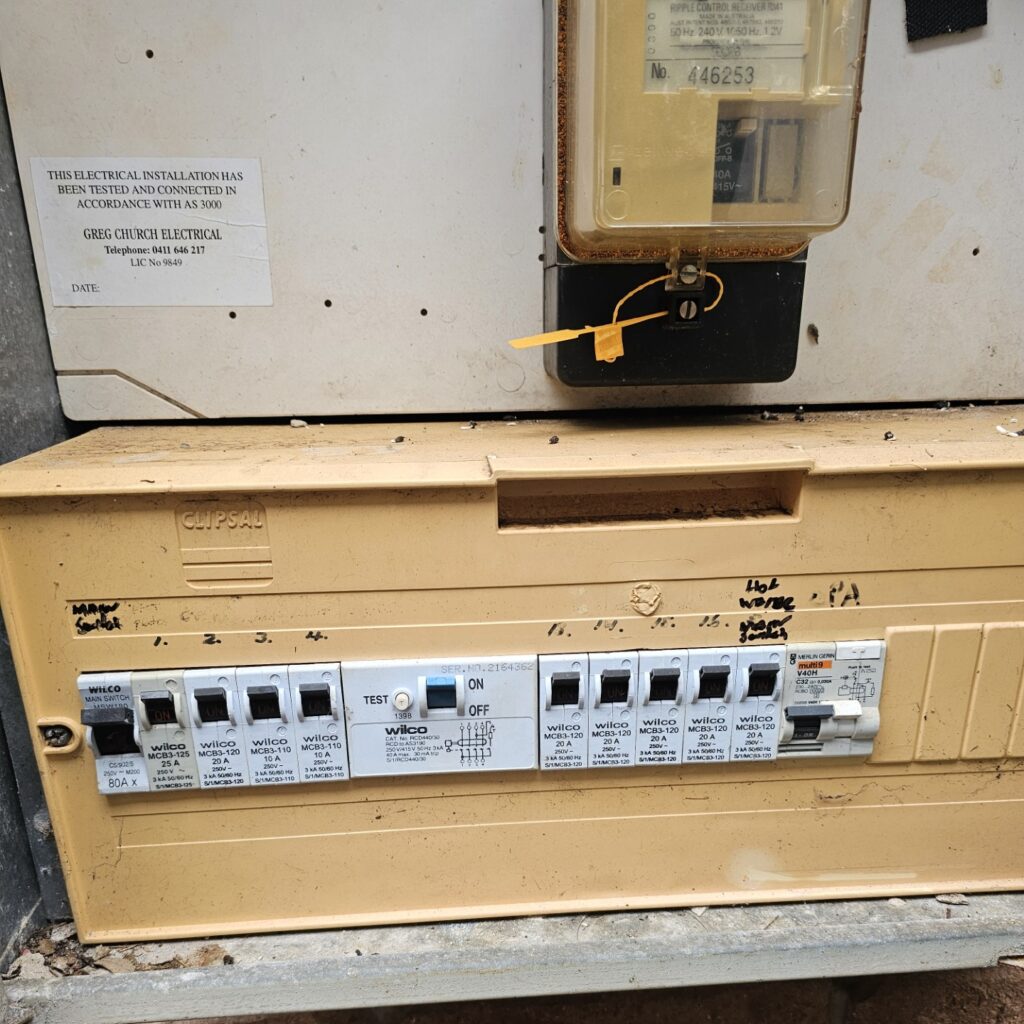

The original switchboard was outdated, featuring obsolete circuit breakers and a single Residual Current Device (RCD) that provided inadequate protection for the entire property. It was incapable of supporting solar energy integration and battery storage. Moreover, the circuit labeling was insufficient, rendering it non-compliant with modern standards governing current energy generation systems. This lack of compliance posed a significant risk to the efficient operation of the newly upgraded systems, necessitating immediate action for safety and performance.

Is a Three-Phase Upgrade Truly Necessary for Your Electrical System?

When assessing the specifications of a 17.86kW solar system combined with a 30kWh battery, there is a common misconception that a three-phase upgrade is essential. This misunderstanding can lead to significant financial consequences for homeowners, potentially incurring costs ranging from £3,500 to £6,000, alongside a lengthy wait for approval from Energex for necessary network modifications. Such expenses can be avoided with the right assessment and understanding of your system's requirements.

Conducting a Comprehensive Initial Technical Assessment

Two key factors were instrumental in determining whether a three-phase upgrade was genuinely necessary. Firstly, the supply cable for the residence was strategically positioned near the street junction. This advantageous location allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since the solar and battery systems are specifically designed to reduce demand on the grid rather than increase it, there was no technical justification from the network's perspective for necessitating a three-phase upgrade. Furthermore, the ducted air conditioning system was also found to comply with the essential parameters for efficient single-phase operation, reinforcing the decision to maintain the existing configuration.

As a result, the decision was made to retain the single-phase configuration. The switchboard was upgraded to guarantee it could safely and competently handle all new electrical loads without compromising safety or adherence to regulatory standards. This proactive approach ensured that the homeowner's renovation could proceed without unnecessary complications.

Thorough Examination of Installed Components for Enhanced Safety and Compliance

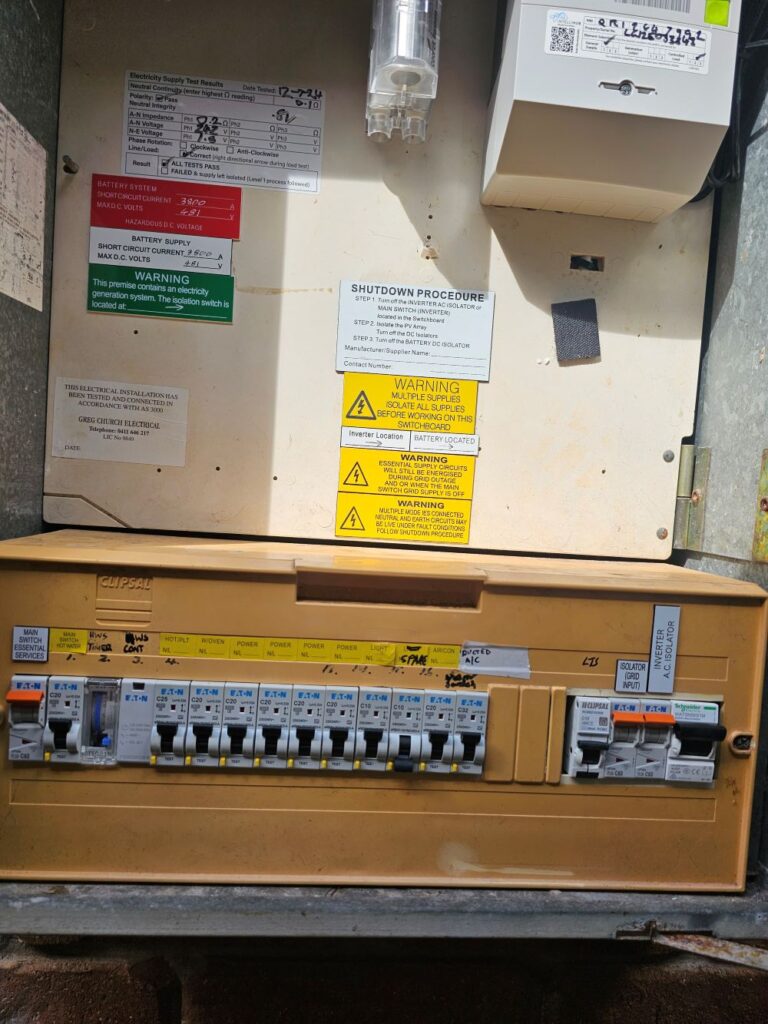

The existing switchboard underwent a complete dismantling and thorough reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units sourced from Eaton, with each breaker meticulously labelled for easy identification and compliance with safety standards. The circuits were carefully separated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to enhance safety and ensure compliance with current regulations.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition significantly reduces the property's dependence on the grid by optimising the use of the solar system's output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and efficiency, contributing to overall energy savings.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, in addition to multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard, ensuring compliance and safety.

The completed switchboard now fully adheres to the latest Australian standards, ensuring it is appropriately set up for any future electrical service work required at the property, thereby enhancing safety and operational efficiency.

Homeowner Reaps Benefits from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not essential for their specific circumstances, leading to substantial savings and peace of mind.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be crucial in specific scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property. Our expertise ensures you make informed decisions without incurring unnecessary costs.

We promise no upselling occurs; you will receive an accurate evaluation tailored to your home’s unique needs.
